6028R-WTR

Server Supermicro SYS-6028R-WTR Wio • 825TQ-R740WB • X10DRW-i • 2U IPMI

Supermicro
Product unavailable (EOL) or limited sale (shortage). Please contact.
You can check our refurbished list on our blog https://www.serverparts.cz/en/blog?q=refurbished
6028R-WTR

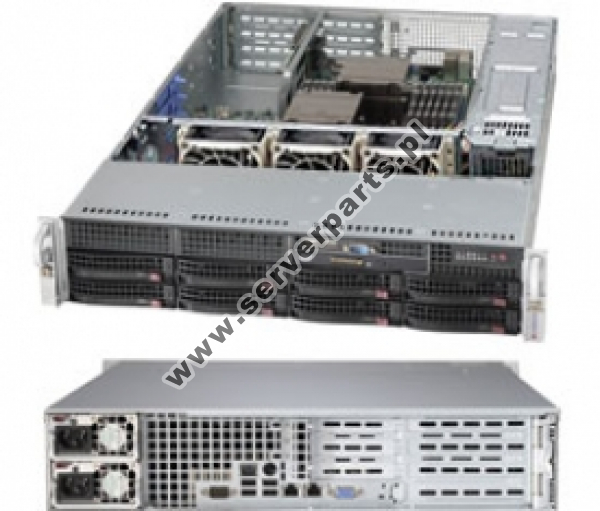

Image above may show a varied configuration or optional parts.

Net: $ 1 392.07

Gross: $ 1 712.25

Availability: EOL

Manufacturer: Supermicro
Part number: 6028R-WTR
Warehouse product ID: 4838
Size of the package (LxWxH): 89cm x 65cm x 44cm
UPC/EAN: 672042157525

Availability*: On order (estimated delivery time from 10 to 21 business days)

* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.

Delivery cost: $ 7.17 net ($ 8.82 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS

Kluczowe cechy / Key features :

1. Dual socket R3 (LGA 2011) supports, Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
3. 8x 3.5" Hot-swap SAS/SATA HDD bays for Customizable Storage
4. Riser card support up to: 4x PCI-E 3.0 x8 (2 FHFL, 2 FHHL) 2x PCI-E 3.0 (Low-profile) slots
5. Intel® i350 Dual port GbE LAN
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. I/O ports: 2x SuperDOM, 1x VGA, 2x COM, TPM 1.2, 6x USB 3.0 (4 rear, 2 via header)
8. 740W Redundant Power Supplies, Platinum Level (94%+)

Product description

We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

Manufacturer Supermicro
SKU SYS-6028R-WTR
Basic informations
Server content
See more, section: Parts List - (Items Included)
Qty Product name
1 Chassis: 825TQ-R740WB #
1 Motherboard: X10DRW-i #
1(2) CPU Heat Sink: SNK-P0048PS
Basic wiring
Additional content
RSC RAID
RSC-R1UW-E8R RSC-R2UW-4E8
Power type AC
NVMe support No
NGSFF support No
Family Wio
Chassis
Product name 825TQ-R740WB
More info at manufacturer site Click here to view Broken link? Report us.
Basic informations
U size 2U
Expansion slots # 7
Motherboard formats support Proprietary
Motherboard sizes support 8.15" x 13.05", 12" x 13", 12.3" x 13", 12.8" x 13.4"
Power Supply
Redundant power supply Yes
Power supply power 740 W
Power supply type AC
Drives
Hot-Swap Yes
Max. drives # 8
3,5" drives support Yes
2,5" drives support Yes
SATA support Yes
SAS support Yes
CD/DVD drive installation possibility Yes
CD/DVD drive type slim
SAS controller required Yes
Other
Application Storage, Cost-effective, Cost-optimized, UIO/WIO
Motherboard
Product name X10DRW-i
More info at manufacturer site Click here to view Broken link? Report us.
Basic informations
Chipset C612
Format Proprietary
Size 12.3" x 13"
Expansion slots # 1
Processor
CPU socket LGA2011
CPU family Intel Xeon E5-2600V3/4 LGA2011
CPU builtin No
Max. CPU # 2
SNK shape Narrow
System Memory
Max. memory size support 1024 GB
Memory sockets # 16
Memory correction support ER
Memory size type support DIMM
Memory type support DDR4
On-Board Devices
SATA support Yes
SATA sockets # 10
SAS support No
NIC # 2
NIC chipset/type
Chipset Type
i350 1GbE
i350 1GbE
Hardaware RAID No
IPMI Yes
VGA Yes
Other
Supported RSC RSC-RR1U-E8
Application UIO/WIO
Power consumption 145 W
